Name: PR-12DC-DA-R-E
SKU: PR-12DC-DA-R-E
Availability: InStock

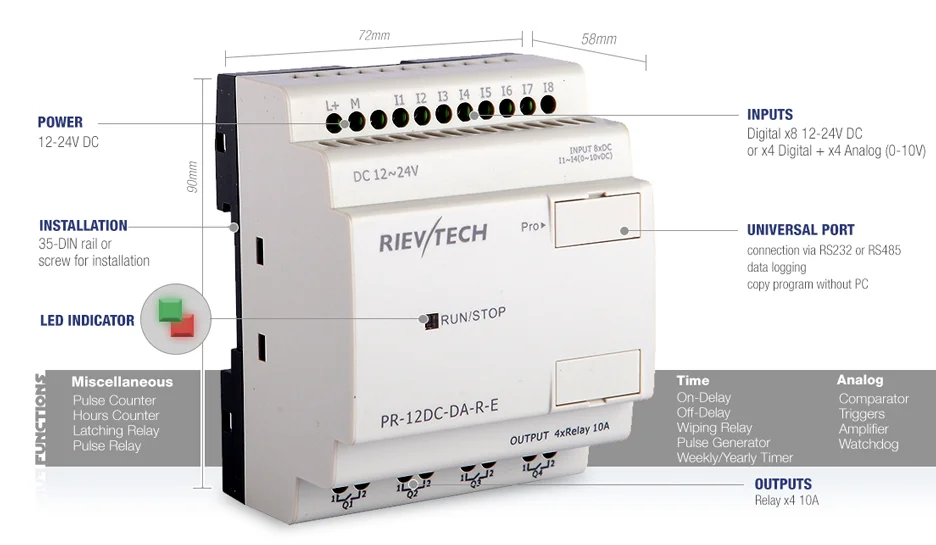

PR-12DC-DA-R-E

Power Supply: 12/24 VDC
Expandable: No
LCD: No

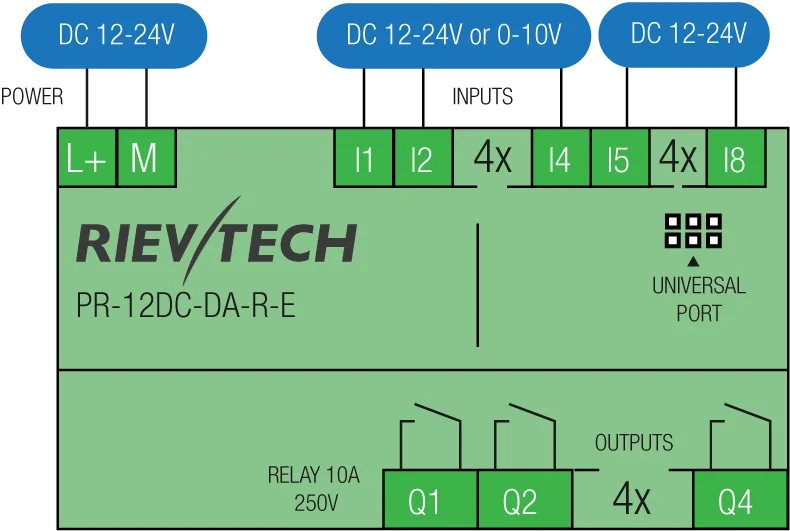

Digital:
- Inputs – Up to 8-channels
  - I1 to I8 – DI (24VDC)
- Outputs – 4-channels
  - Q1 to Q4 (Max.10A)
Analogue:
- Inputs – Up to 4-channels
  - I1 to I4 – AI (0 – 10 VDC)
- Outputs – None

1 in stock

Description

Range

IO Details

Features

Expansion IO

Model	Supply	Inputs	Outputs	Expandable
PR-6AC-R	110 - 240 VAC	4	2	No
PR-12DC-DA-R-E	12/24 VDC	8	4	No
SR-12DC-DA-R	12/24 VDC or 24VAC	8	4	Yes
PR-18DC-DA-R	12/24 VDC	12	6	Yes
PR-18DC-DAI-R-N	12/24 VDC	12	6	Yes
SR-22AC-R	110 - 240 VAC	14	8	Yes
PR-24DC-DA-R	12/24 VDC	14	10	Yes
PR-26DC-DAI-R-N	12/24 VDC	16	10	Yes
PR-26DC-DAI-RA-N	12/24 VDC	16	10	Yes
PR-26DC-DAI-RT-N	12/24 VDC	16	10	Yes
PR-26DC-DAI-RT-4G	12/24 VDC	16	10	Yes
EXM-12DC-DA-RT-WIFI	12/24 VDC	8	4	No
EXM-12DC-DA-RT-GWIFI	12/24 VDC	8	4	No

Model	Digital		Analogue
Model	Inputs	Outputs	Inputs	Outputs
PR-6AC-R	4 x AC (I1 - I4)	2 x Relay (Q1 - Q2 @ 10A)	-	-
PR-12DC-DA-R-E	8 x DC (I1 - I8)	4 x Relay (Q1 - Q4 @ 10A)	4 x 0-10V (I1 - I4)	-
SR-12DC-DA-R	8 x DC (I1 - I8)	4 x Relay (Q1 - Q4 @ 10A)	4 x 0-10V (I1 - I4)	-
PR-18DC-DA-R	12 x DC (I1 - IC) I7 - IC HSI	6 x Relay (Q1 - Q6 @ 10A)	6 x 0-10V (I1 - I6)	-
PR-18DC-DAI-R-N	12 x DC (I1 - IC) I9 - IC HSI	6 x Relay (Q1 - Q6 @ 10A)	6 x 0-10V (I1 - I6) 2 x 0-20mA (I7 - I8)	-
SR-22AC-R	14 x DC (I1 - IE) I9 - IC HSI	8 x Relay (Q1 - Q8 @ 10A)	-	-
PR-24DC-DA-R	14 x DC (I1 - IE) I9 - IC HSI	10 x Relay (Q1 - QA @ 10A)	6 x 0-10V (I1 - I6)	-
PR-26DC-DAI-R-N	16 x DC (I1 - IG) I9 - IC HSI	8 x Relay (Q3 - Q6 @ 5A) (Q7 - QA @ 10A)	8 x 0-10V (I1 - I8) 4 x 0-10V/0-20mA (ID - IG) (Software Selectable)	-
PR-26DC-DAI-RA-N	16 x DC (I1 - IG) I9 - IC HSI	8 x Relay (Q3 - Q6 @ 5A) (Q7 - QA @ 10A)	8 x 0-10V (I1 - I8) 4 x 0-10V/0-20mA (ID - IG) (Software Selectable)	2 x 0-10V (Q1 - Q2)
PR-26DC-DAI-RT-N	16 x DC (I1 - IG) I9 - IC HSI	2 x PNP Transistor (Q1 - Q2 @ 0.3A) 8 x Relay (Q3 - Q6 @ 5A) (Q7 - QA @ 10A)	8 x 0-10V (I1 - I8) 4 x 0-10V/0-20mA (ID - IG) (Software Selectable)	-
PR-26DC-DAI-RT-4G	16 x DC (I1 - IG) I9 - IC HSI	2 x PNP Transistor (Q1 - Q2 @ 0.3A) 8 x Relay (Q3 - Q6 @ 5A) (Q7 - QA @ 10A)	8 x 0-10V (I1 - I8) 4 x 0-10V/0-20mA (ID - IG) (Software Selectable)	-
EXM-12DC-DA-RT-WIFI	8 x DC (I1 - I8)	4 x Relay (Q1 - Q4 @ 10A)	4 x 0-10V (I1 - I4)	-
EXM-12DC-DA-RT-GWIFI	8 x DC (I1 - I8)	4 x Relay (Q1 - Q4 @ 10A)	4 x 0-10V (I1 - I4)	-

Model	HSC	PWM	Ethernet	WiFi	GSM	RTC	HMI	RS485	IIoT	Email	Logging	Expansions	Blocks
PR-6AC-R	N	N	N	N	N	Y	N	N	N	N	N	N	64
PR-12DC-DA-R-E	N	N	N	N	N	Y	N	N	N	N	N	N	512
SR-12DC-DA-R	N	N	Y	N	N	Y	Y	N	N	N	N	3	256
PR-18DC-DA-R	Y	N	N	N	N	Y	Y	Y	N	N	N	16	1024
PR-18DC-DAI-R-N	Y	N	Y	N	N	Y	Y	Y	Y	N	Y	16	1024
SR-22AC-R	N	N	Y	N	N	Y	Y	Y	N	N	N	3	256
PR-24DC-DA-R	Y	Y	N	N	Y	Y	Y	Y	N	N	N	16	1024
PR-26DC-DAI-R-N	Y	N	Y	N	N	Y	Y	Y	Y	N	Y	16	1024
PR-26DC-DAI-RA-N	Y	N	Y	N	N	Y	Y	Y	Y	N	Y	16	1024
PR-26DC-DAI-RT-N	Y	Y	Y	N	N	Y	Y	Y	Y	N	Y	16	1024
PR-26DC-DAI-RT-4G	Y	Y	Y	N	Y	Y	Y	Y	Y	Y	Y	16	1024
EXM-12DC-DA-RT-WIFI	N	N	Y	Y	N	Y	Y	Y	N	N	N	16	1024
EXM-12DC-DA-RT-GWIFI	N	N	Y	Y	Y	Y	Y	Y	N	Y	N	16	1024

Additional information

Weight	0.25 kg
Dimensions	80 × 95 × 70 mm
Supply	DC
Digital Inputs	6, 2, 4, 8
Digital Outputs	Relay, 2, 4
Analogue Inputs	0-10 V, 2, 3, 4
Features	Function Block Diagram (FBD), Ladder, LID Support
HS Code	8537101090
COO	CHINA
