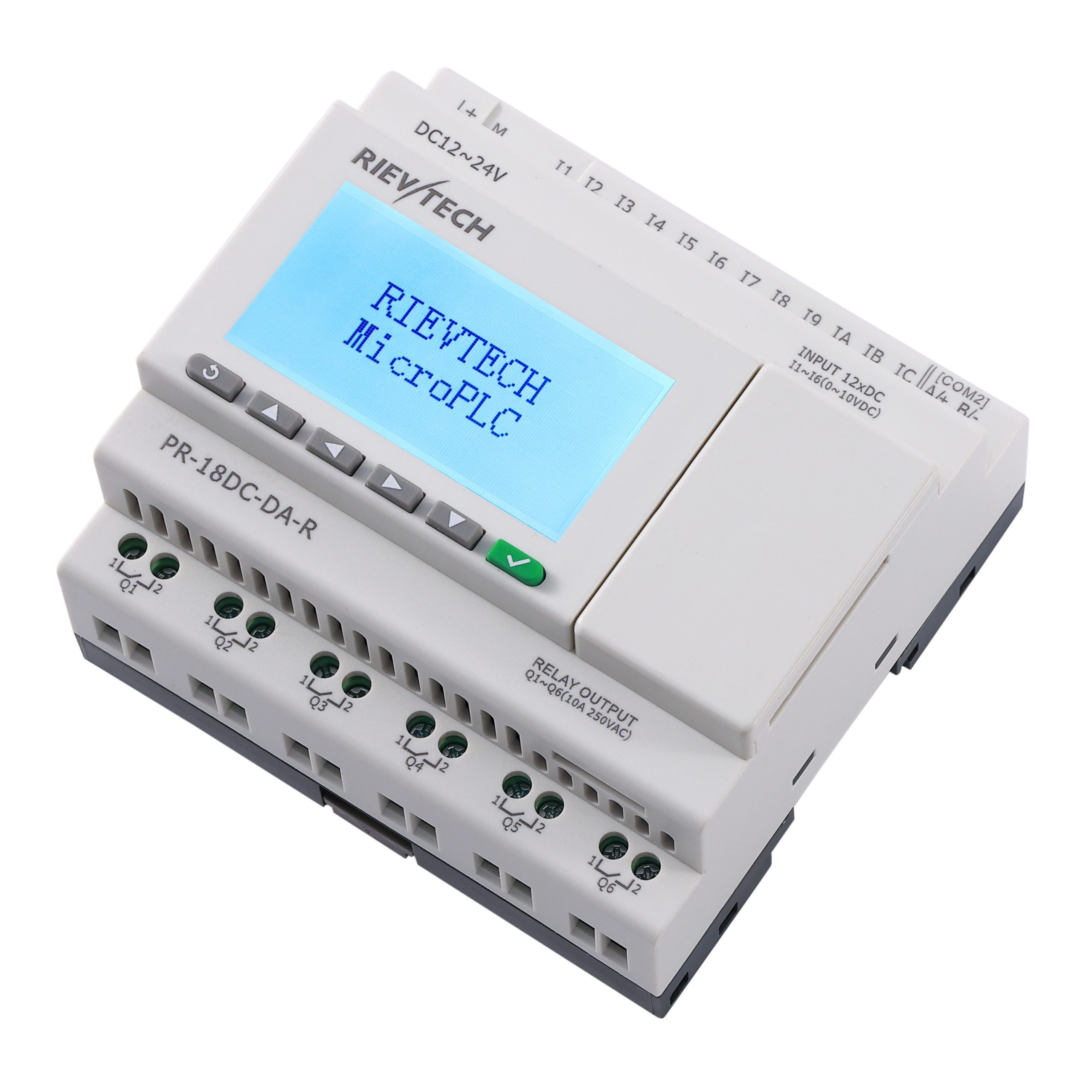

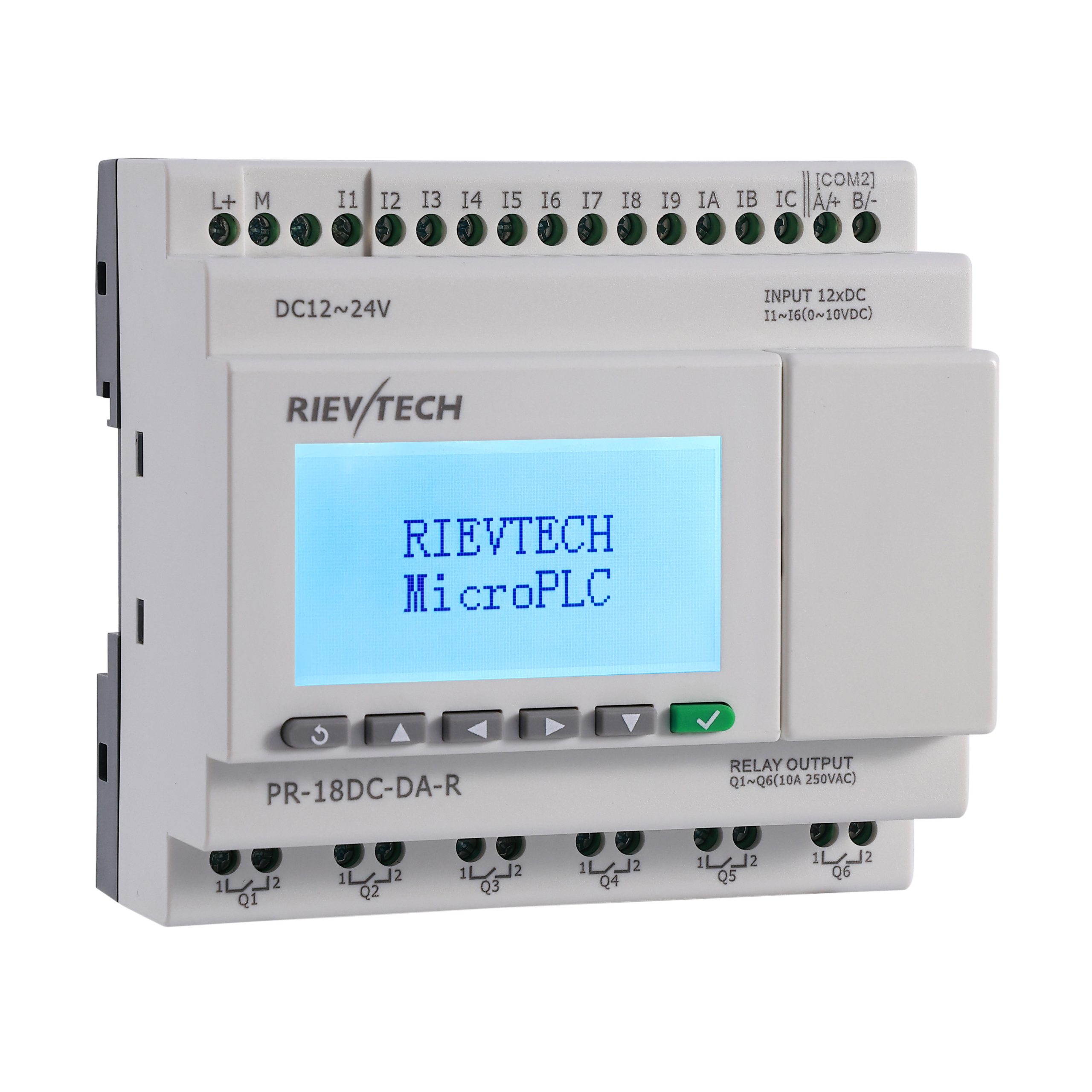

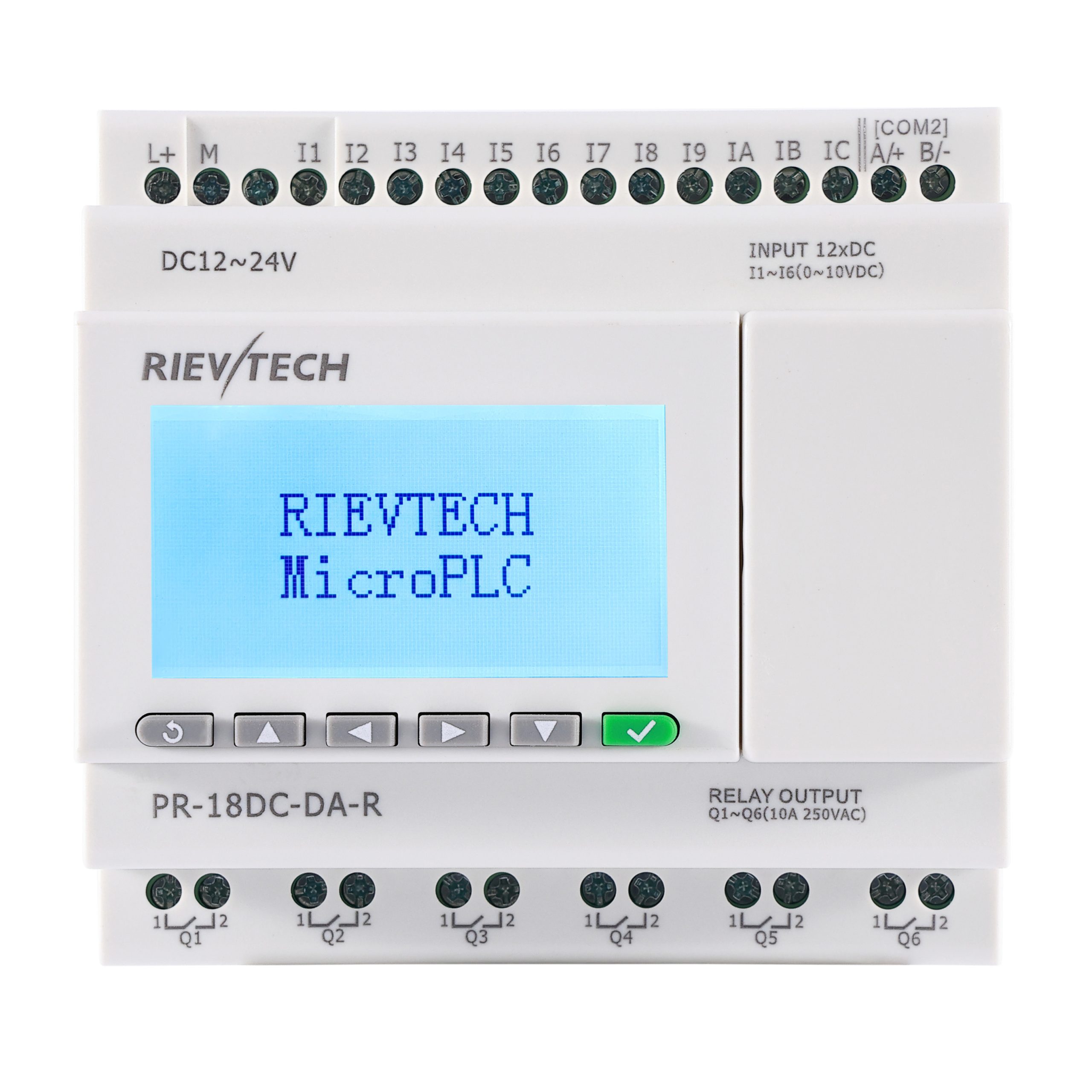

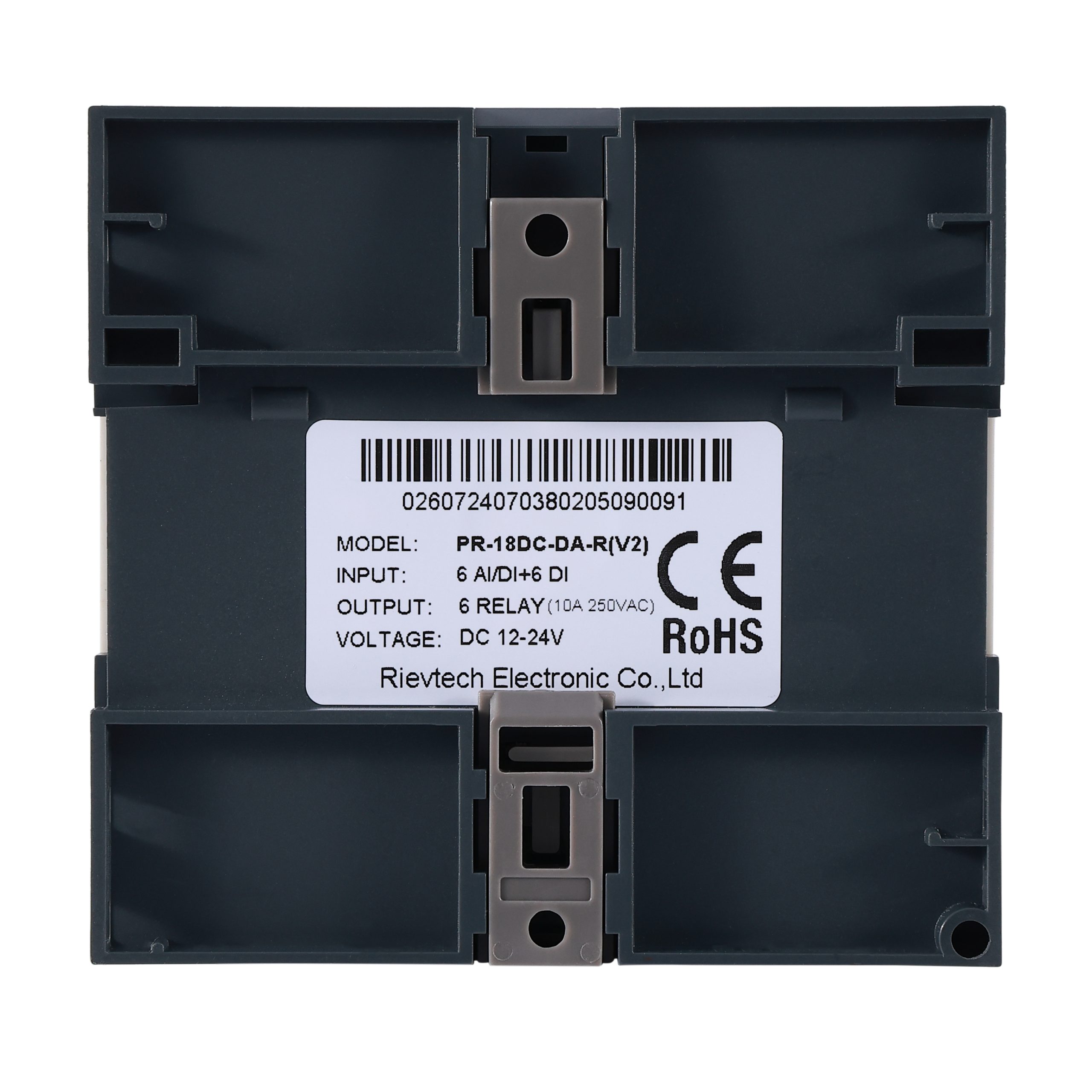

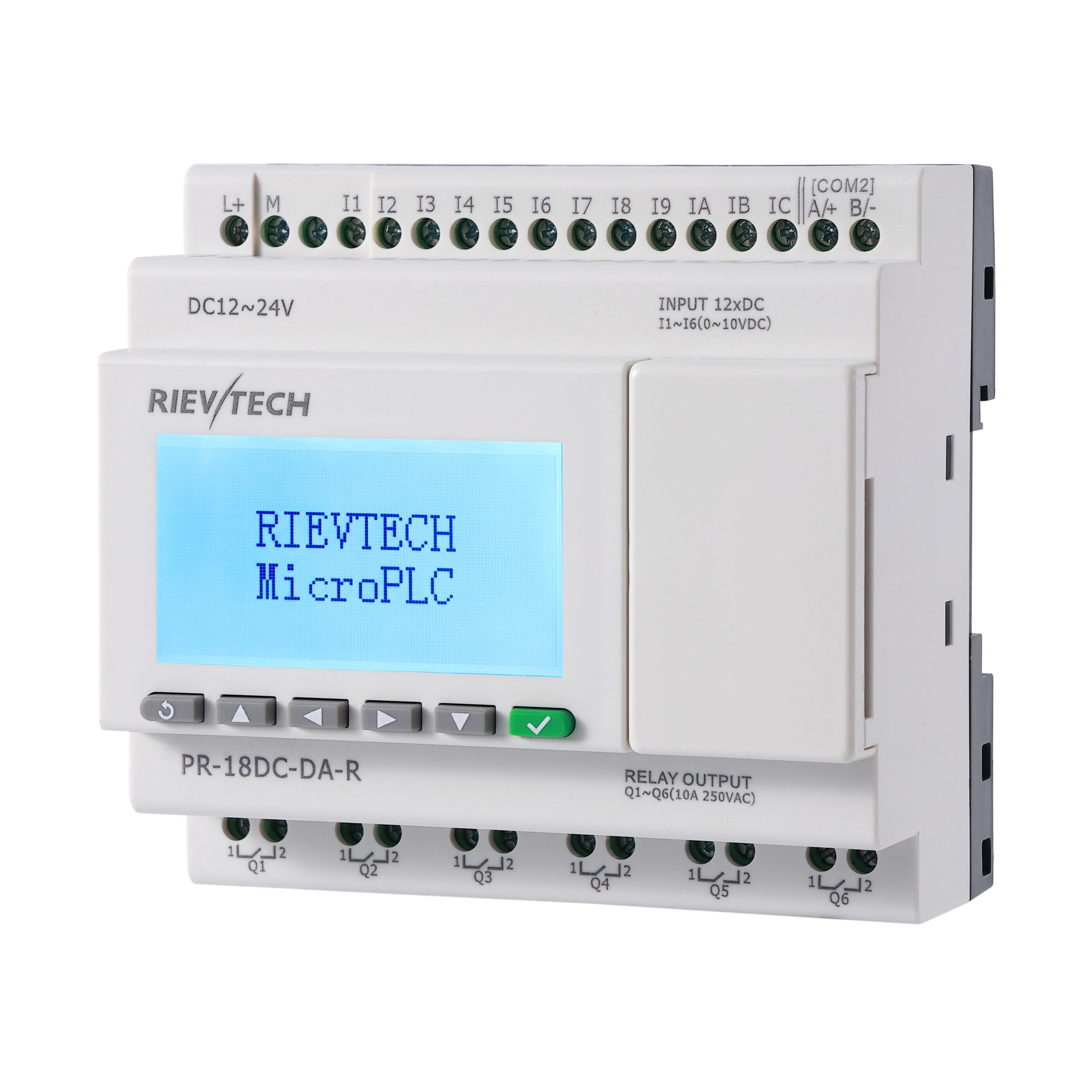

PR-18DC-DA-R

Power Supply: 12/24 VDC
Expandable: Yes
LCD: Yes
Web Server: No
SD Logging: Yes
IIoT: No
Communication:
- Ethernet: No
- RS485: Yes (COM 2)
  - Modbus RTU Client
  - Modbus RTU Server
- 4G/GSM: No
- Email: No
- SMS: No
- GPRS: No
Digital:
- Inputs – Up to 12-channels
  - I1 to IC – DI (24VDC)
- Outputs – 6-channels
  - Q1 to Q6 (Max.10A)
Analogue:
- Inputs – Up to 8-channels
  - I1 to I8 – AI (0 – 10VDC)
- Outputs – None

46 in stock

Description

Range

IO Details

Features

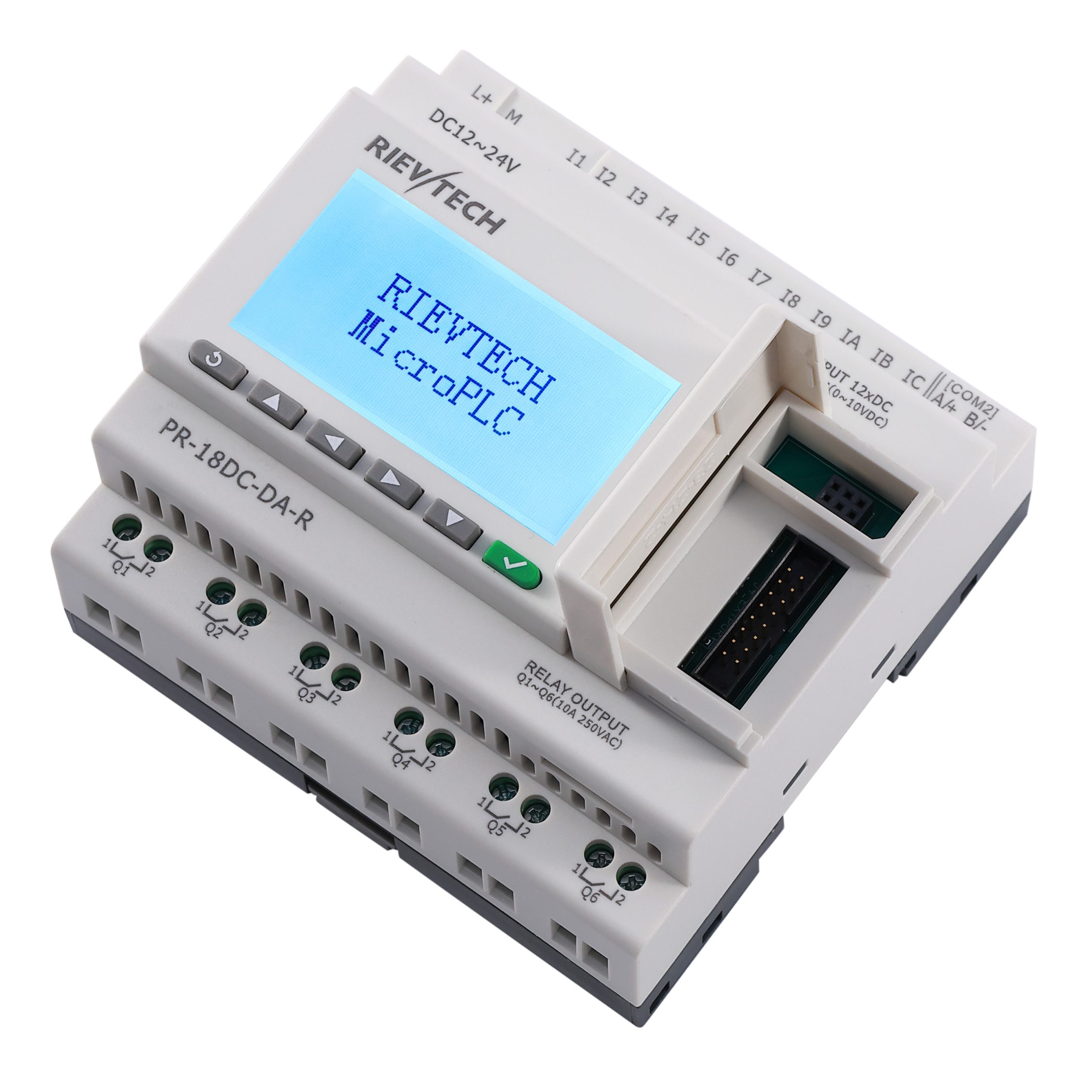

Expansion IO

Model	Supply	Inputs	Outputs	Expandable
PR-6AC-R	110 - 240 VAC	4	2	No
PR-12DC-DA-R-E	12/24 VDC	8	4	No
SR-12DC-DA-R	12/24 VDC or 24VAC	8	4	Yes
PR-18DC-DA-R	12/24 VDC	12	6	Yes
PR-18DC-DAI-R-N	12/24 VDC	12	6	Yes
SR-22AC-R	110 - 240 VAC	14	8	Yes
PR-24DC-DA-R	12/24 VDC	14	10	Yes
PR-26DC-DAI-R-N	12/24 VDC	16	10	Yes
PR-26DC-DAI-RA-N	12/24 VDC	16	10	Yes
PR-26DC-DAI-RT-N	12/24 VDC	16	10	Yes
PR-26DC-DAI-RT-4G	12/24 VDC	16	10	Yes
EXM-12DC-DA-RT-WIFI	12/24 VDC	8	4	No
EXM-12DC-DA-RT-GWIFI	12/24 VDC	8	4	No

Model	Digital		Analogue
Model	Inputs	Outputs	Inputs	Outputs
PR-6AC-R	4 x AC (I1 - I4)	2 x Relay (Q1 - Q2 @ 10A)	-	-
PR-12DC-DA-R-E	8 x DC (I1 - I8)	4 x Relay (Q1 - Q4 @ 10A)	4 x 0-10V (I1 - I4)	-
SR-12DC-DA-R	8 x DC (I1 - I8)	4 x Relay (Q1 - Q4 @ 10A)	4 x 0-10V (I1 - I4)	-
PR-18DC-DA-R	12 x DC (I1 - IC) I7 - IC HSI	6 x Relay (Q1 - Q6 @ 10A)	6 x 0-10V (I1 - I6)	-
PR-18DC-DAI-R-N	12 x DC (I1 - IC) I9 - IC HSI	6 x Relay (Q1 - Q6 @ 10A)	6 x 0-10V (I1 - I6) 2 x 0-20mA (I7 - I8)	-
SR-22AC-R	14 x DC (I1 - IE) I9 - IC HSI	8 x Relay (Q1 - Q8 @ 10A)	-	-
PR-24DC-DA-R	14 x DC (I1 - IE) I9 - IC HSI	10 x Relay (Q1 - QA @ 10A)	6 x 0-10V (I1 - I6)	-
PR-26DC-DAI-R-N	16 x DC (I1 - IG) I9 - IC HSI	8 x Relay (Q3 - Q6 @ 5A) (Q7 - QA @ 10A)	8 x 0-10V (I1 - I8) 4 x 0-10V/0-20mA (ID - IG) (Software Selectable)	-
PR-26DC-DAI-RA-N	16 x DC (I1 - IG) I9 - IC HSI	8 x Relay (Q3 - Q6 @ 5A) (Q7 - QA @ 10A)	8 x 0-10V (I1 - I8) 4 x 0-10V/0-20mA (ID - IG) (Software Selectable)	2 x 0-10V (Q1 - Q2)
PR-26DC-DAI-RT-N	16 x DC (I1 - IG) I9 - IC HSI	2 x PNP Transistor (Q1 - Q2 @ 0.3A) 8 x Relay (Q3 - Q6 @ 5A) (Q7 - QA @ 10A)	8 x 0-10V (I1 - I8) 4 x 0-10V/0-20mA (ID - IG) (Software Selectable)	-
PR-26DC-DAI-RT-4G	16 x DC (I1 - IG) I9 - IC HSI	2 x PNP Transistor (Q1 - Q2 @ 0.3A) 8 x Relay (Q3 - Q6 @ 5A) (Q7 - QA @ 10A)	8 x 0-10V (I1 - I8) 4 x 0-10V/0-20mA (ID - IG) (Software Selectable)	-
EXM-12DC-DA-RT-WIFI	8 x DC (I1 - I8)	4 x Relay (Q1 - Q4 @ 10A)	4 x 0-10V (I1 - I4)	-
EXM-12DC-DA-RT-GWIFI	8 x DC (I1 - I8)	4 x Relay (Q1 - Q4 @ 10A)	4 x 0-10V (I1 - I4)	-

Model	HSC	PWM	Ethernet	WiFi	GSM	RTC	HMI	RS485	IIoT	Email	Logging	Expansions	Blocks
PR-6AC-R	N	N	N	N	N	Y	N	N	N	N	N	N	64
PR-12DC-DA-R-E	N	N	N	N	N	Y	N	N	N	N	N	N	512
SR-12DC-DA-R	N	N	Y	N	N	Y	Y	N	N	N	N	3	256
PR-18DC-DA-R	Y	N	N	N	N	Y	Y	Y	N	N	N	16	1024
PR-18DC-DAI-R-N	Y	N	Y	N	N	Y	Y	Y	Y	N	Y	16	1024
SR-22AC-R	N	N	Y	N	N	Y	Y	Y	N	N	N	3	256
PR-24DC-DA-R	Y	Y	N	N	Y	Y	Y	Y	N	N	N	16	1024
PR-26DC-DAI-R-N	Y	N	Y	N	N	Y	Y	Y	Y	N	Y	16	1024
PR-26DC-DAI-RA-N	Y	N	Y	N	N	Y	Y	Y	Y	N	Y	16	1024
PR-26DC-DAI-RT-N	Y	Y	Y	N	N	Y	Y	Y	Y	N	Y	16	1024
PR-26DC-DAI-RT-4G	Y	Y	Y	N	Y	Y	Y	Y	Y	Y	Y	16	1024
EXM-12DC-DA-RT-WIFI	N	N	Y	Y	N	Y	Y	Y	N	N	N	16	1024
EXM-12DC-DA-RT-GWIFI	N	N	Y	Y	Y	Y	Y	Y	N	Y	N	16	1024

Model	Supply	Digital Inputs	Digital Outputs	Analogue Inputs	Analogue Outputs
PR-E-16AC-R	110 - 240 VAC	8 x AC (I1 - I8)	8 Relay (Q1 - Q4 @ 3A) (Q5 - Q8 @ 10A)	-	-
PR-E-16DC-DA-R	12 - 24 VDC	8 x DC (I1 - I8)	8 Relay (Q1 - Q4 @ 3A) (Q5 - Q8 @ 10A)	4 x 0-10V (I1 - I4)	-
PR-E-16DC-DA-TN	12 - 24 VDC	8 x DC (I1 - I8)	8 x PNP Transistor (Q1 - Q8 @ 0.3A)	4 x 0-10V (I1 - I4)	-
PR-E-DC-16IN	12 - 24 VDC	16 x DC (I1 - IG)	-	-	-
PR-E-DC-16DO	12 - 24 VDC	-	16 x Relay (Q1 - QF @ 3A) (QG @ 10A)	-	-
PR-E-PT100/PT1000	12 - 24 VDC	-	-	4 x PT100/PT1000 (-50 to 200°C)	-
PR-E-4AI-V/I	12 - 24 VDC	-	-	4 x 0/4 - 20mA or 0 - 10 V (Software Selectable)	-
PR-E-2AQ-VI	12 - 24 VDC	-	-	-	2 x 0/4 - 20mA or 0 - 10 V (Software Selectable)

Weight	0.4 kg
Dimensions	105 × 95 × 70 mm
Supply	DC
Digital Inputs	6, High Speed Counting, 2, 4, 8, 10, 12
Digital Outputs	Relay, 2, 4, 6
Analogue Inputs	0-10 V, 2, 3, 4, 6, 8
Features	Function Block Diagram (FBD), Ladder, LID Support, PID
HS Code	8537101090
COO	CHINA
