SR-12DC-DA-R

£106.00 ex.VAT

SR-12 Ethernet Series PLC CPU – Digital/Analogue (AC or DC)

Power Supply: 12/24 VDC or 24 VAC
Expandable: Yes (Max.3 expansions)
LCD: Yes
Web Server: No
SD Logging: No
IIoT: No
Communication:
- Ethernet: Yes – 10Mb
  - Modbus TCP/IP Client
  - Modbus TCP/IP Server
- RS485: No

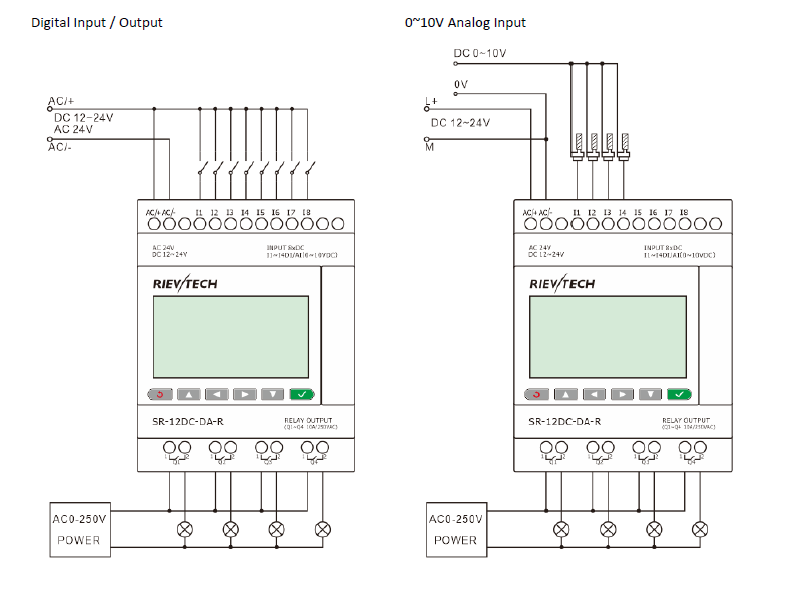

Digital:
- Inputs – Up to 8-channels
  - I1 to I4 – DI or AI(0 to 10VDC)
  - I5 to I8 – DI
  - OFF (< 5 VDC)
  - ON (> 8 VDC)
- Outputs – 4-channels
  - Q1 – Q4 (Max.10A @ 250VAC)
Analogue:
- Inputs – Up to 4-channels
  - I1 to I4 (0 – 10 VDC)
- Outputs – None

SKU: SR-12DC-DA-R Categories: Ethernet PLC's, Micro PLC, Rievtech PLC, SR-12 Series Tags: AC Power, DC Power, Ethernet, Modbus/TCP, Rievtech, SR-12

Description

Range

IO Details

Features

Expansion IO

Model	Supply	Inputs	Outputs	Expandable
PR-12AC-R-N	110 - 240 VAC	8	4	Yes
SR-12DC-DA-R	12/24 VDC or 24VAC
PR-12DC-DA-R-N	12/24 VDC
PR-18AC-R-N	110 - 240 VAC	12	6
PR-18DC-DAI-R-N	24 VDC
PR-18DC-DAI-RT-N
PR-23DC-PTDAI-RT-N		13	10
PR-23DC-PTDAI-RT-4G
PR-24DC-DA-R	12/24 VDC	14	10
PR-26AC-R-N	110 - 240 VAC	16	10
PR-26DC-DAI-RA-N	12/24 VDC
PR-26DC-DAI-RT-N
PR-26DC-DAI-RT-2G
PR-26DC-DAI-RT-4G
PR-26DC-DAI-RT-WIFI
EXM-12DC-DA-RT-WIFI	12/24 VDC	8	4	No
EXM-12DC-DA-RT-GWIFI

Model	Digital		Analogue
	Inputs	Outputs	Inputs	Outputs
PR-12AC-R-N	8 x AC (I1 - I8)	4 Relay (Q1 - Q4 @ 10A)	-
SR-12DC-DA-R	8 x DC (I1 - I8)		4 x 0-10V (I1 - I4)	-
PR-12DC-DA-R-N	8 x DC (I1 - I8)
PR-18AC-R-N	12 x AC (I1 - IC)	6 x Relay (Q1 - Q6 @ 10A)	-
PR-18DC-DAI-R-N	12 x DC (I1 - IC) I9 - IC HSI		6 x 0-10V (I1 - I6) 2 x 4-20mA (I7 - I8)
PR-18DC-DAI-RT-N		6 x PNP (Q1 - Q6 @ 0.3A)
PR-23DC-PTDAI-RT-N	10 x DC (I7 - I8, ID-IG) I9 - IC HSI	2 x PNP (Q1 - Q2 @ 0.3A) 8 x Relay (Q3 - Q6 @ 5A) (Q7 - QA @ 10A)	3 x PT100 (I1 - I3) 2 x 0-10V (I7 - I8) 4 x 0-10V/0-20mA (ID - IG)
PR-23DC-PTDAI-RT-4G
PR-24DC-DA-R	14 x DC (I1 - IE) I9 - IC HSI	10 x Relay (Q1 - QA @ 10A)	6 x 0-10V (I1 - I6)
PR-26AC-R-N	16 x AC (I1 - IG)	10 x Relay (Q1 - Q6 @ 5A) (Q7 - QA @ 10A)	-
PR-26DC-DAI-RA-N	16 x DC (I1 - IG) I9 - IC HSI	8 x Relay (Q3 - Q6 @ 5A) (Q7 - QA @ 10A)	8 x 0-10V (I1 - I8) 4 x 0-10V/0-20mA (ID - IG)	2 x 0-10V (Q1 - Q2)
PR-26DC-DAI-RT-N		2 x PNP (Q1 - Q2 @ 0.3A) 8 x Relay (Q3 - Q6 @ 5A) (Q7 - QA @ 10A)		-
PR-26DC-DAI-RT-2G
PR-26DC-DAI-RT-4G
EXM-12DC-DA-RT-WIFI	8 x DC (I1 - I8)	4 Relay (Q1 - Q4 @ 10A)	4 x 0-10V (I1 - I4)	-
EXM-12DC-DA-RT-GWIFI

Model	HSC	PWM	Ethernet	WiFi	GSM	RTC	HMI	RS485	IIoT	Email	Logging	Expansions	Blocks
SR-12DC-DA-R	N	N	Y	N	N	Y	Y	N	N	N	N	3	256
PR-12AC-R-N	N	N	Y	N				Y	Y		Y	16	512
PR-12DC-DA-R-N	Y	Y						Y
PR-18AC-R-N	N	N						N
PR-18DC-DAI-R-N	Y	N						Y					1024
PR-18DC-DAI-RT-N	Y	Y
PR-23DC-PTDAI-RT-N
PR-23DC-PTDAI-RT-4G					Y					Y
PR-24DC-DA-R			N						N	N	N
PR-26AC-R-N	N	N	Y		N			N	Y	N	Y
PR-26DC-DAI-RA-N	Y							Y
PR-26DC-DAI-RT-N		Y
PR-26DC-DAI-RT-2G					Y
PR-26DC-DAI-RT-4G										Y
EXM-12DC-DA-RT-WIFI	N	N		Y	N				N	N	N
EXM-12DC-DA-RT-GWIFI					Y					Y

Model	Supply	Digital Inputs	Digital Outputs	Analogue Inputs	Analogue Outputs
PR-E-16AC-R	110 - 240 VAC	8 x AC (I1 - I8)	8 Relay (Q1 - Q4 @ 3A) (Q5 - Q8 @ 10A)	-	-
PR-E-16DC-DA-R	12 - 24 VDC	8 x DC (I1 - I8)		4 x 0-10V (I1 - I4)
PR-E-16DC-DA-TN			8 x PNP (Q1 - Q8 @ 0.3A)
PR-E-DC-16IN		16 x DC (I1 - IG)	-	-
PR-E-DC-16DO		-	16 x Relay (Q1 - QF @ 3A) (QG @ 10A)	-
PR-E-PT100/PT1000		-	-	4 x PT100/PT1000 (-50 to 200°C)
PR-E-4AI-V/I				4 x 0/4 - 20mA or 0 - 10 V (Software Selectable)
PR-E-2AQ-VI				-	2 x 0/4 - 20mA (Software Selectable)

Additional information

Weight	0.45 kg
Dimensions	130 × 140 × 70 mm
Supply	AC, DC
Digital Inputs	8
Digital Outputs	Relay, 4
Analogue Inputs	0-10 V, 4
Communication	Ethernet
Features	Function Block Diagram (FBD), Ladder, PID
HS Code	8537101090
COO	CHINA
