MT8070iE

£305.00 ex.VAT

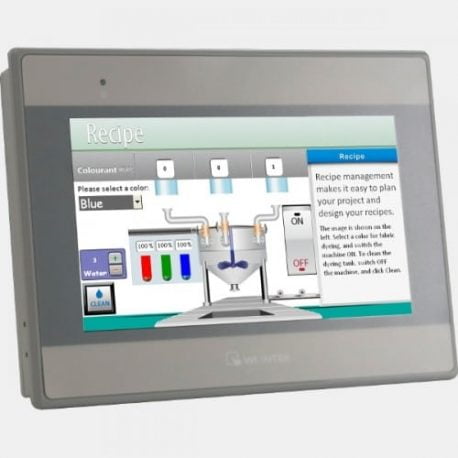

MT8070iE – Weintek HMI (DC)

The Weintel MT8070iE HMI model provides excellent communication facilities with an Ethernet port and two serial ports, with RS-485 Dual Isolation!

SKU: MT8070iE Categories: , Tag:

Description

MT8070iE – Weintek HMI (DC)

  • Motherboard:
    • Processor: RISC 600 MHz CPU, Flash: 128 Mb, RAM: 128 DDRAM
  • Display:
    • Size: 7″
    • Resolution: 800 x 480
    • LCD: TFT Resistive
    • Colours: 16M
  • Ports:
    • Serial: Com 1: RS232/RS485 2W/4W
      Com 3: RS485 2W
    • RS485 Dual Isolation: Yes
    • Ethernet: 1 x 10/100/1000 Mb
    • USB: 1 x USB 2.0
  • Storage:
    • Flash 128 Mb
    • DDRAM 128 Mb

Additional information

Weight 0.6 kg
Dimensions 200.3 x 146.3 x 34 mm

Range

Model Voltage Size Resolution Colours
MT8050iE 24 VDC (+/-20%) 4.3″ 480 x 272 16.7M
MT8070iER 24 VDC (+/-20%) 7″ 800 x 480 16M
MT8070iE 24 VDC (+/-20%) 7″ 800 x 480 16M
MT8073iE 24 VDC (+/-20%) 7″ 800 x 480 16.7M
MT8102iE 24 VDC (+/-20%) 10.1″ 1024 x 600 16.7M
MT8103iE 24 VDC (+/-20%) 10.1″ 1024 x 600 16.7M

Model USB Host USB Client Ethernet WiFi COM Ports RS485 Dual Isolation
MT8050iE USB 2.0 x 1 N/A 10/100 Base-T x 1 N/A COM 1: RS232/RS485 2W/4W
COM 3: RS485 2W
No
MT8070iER USB 2.0 x 1 N/A 10/100 Base-T x 1 N/A COM 1: RS232/RS485 2W/4W
COM 3: RS485 2W
Yes
MT8070iE USB 2.0 x 1 N/A 10/100 Base-T x 1 N/A COM 1: RS232/RS485 2W/4W
COM 3: RS485 2W
Yes
MT8073iE USB 2.0 x 1 N/A 10/100/1000 Base-T x 2 N/A COM 1: RS232
COM 2: RS485 2W/4W
COM 3: RS232/RS485 2W
No
MT8102iE USB 2.0 x 1 N/A 10/100 Base-T x 1 N/A COM 1: RS232
COM 2: RS485 2W/4W
COM 3: RS232/RS485 2W
No
MT8103iE USB 2.0 x 1 N/A 10/100 Base-T x 1 IEEE 802.11 b/g/n COM 1: RS232
COM 2: RS485 2W/4W
COM 3: RS232/RS485 2W
No

Model SD Slot USB Ethernet Wi-Fi RTC VNC RS485 Dual Isolation EasyAccess Built In
MT8050iE
MT8070iER
MT8070iE
MT8073iE
MT8102iE
MT8103iE

Downloads

MT8070iE Datasheet

MT8070iE Installation Manual

EasyBuilderPro Software
